Homologated Digital Side View Mirror (CMS)

Camera Monitor Systems - automotive mirror replacement for hypercars and supercars

Kappa offers expertise in camera monitor systems homologation, specifically regarding ECE-R46 for mirror classes I and III. This high-quality system has already been successfully integrated into hyper cars and super sports cars, and is now available as a road traffic certified system without special permits.

Digital side-view mirror, digital rear-view mirror, digital mirror, CMS for all hypercars.

Groundbreaking Automotive Camera Monitor System, sports and luxury cars depend on the CMS HDR mirror from Kappa optronics

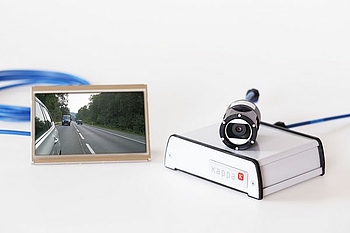

The flexible camera monitor system CMS HDR Mirror from manufacturer Kappa optronics has taken the lead position in the hyper car market, e.g. with projects for Aston Martin (Valkyrie) and KTM (X-Bow GT2). The mirror replacement system consists of a camera, a controller, and a display. It combines state-of-the-art camera technology and expertise gleaned from numerous hyper car projects. It’s hardware and software were designed to comply with the ISO 26262 (ASIL B) functional safety standard.

The CMS HDR Mirror is not only a 100% substitute, but moreover the safest digital translation of a conventional rear-view mirror. As the sole vision company in the market, Kappa offers expertise in camera monitor systems homologation, specifically regarding ECE-R46 for mirror classes I and III. This high-quality system has already been successfully integrated into hyper cars and super sports cars, and is now available as a road traffic certified system without special permits.

Vehicle-specific customer requests can be configured quickly and efficiently. The extremely small camera head gives designers almost limitless freedom. Improved aerodynamics provide maximum performance and increased range. There are even more technical characteristics that will impress users, such as perfect, latency-free and low-flicker HDR imaging that can utilize more residual light than the human eye can. Groundbreaking demonstration videos, with sun low on the horizon and inside tunnels, bear witness to this phenomenal dynamic.



Road traffic certification and safety are the key attributes of an ideal mirror substitute system, and it is in precisely these attributes that Kappa scores the winning point — as the developer of the first digital side rear-view mirror certified for European/international road traffic.

Show text in one Show text in slides

Ready to Race!

Our Racetrack CMS in the race! Revolutionary driver's view with the digital mirror from Kappa optronics.

Demonstration Video

Stream vision in a tunnel with Kappa Camera Monitor System | CMS HDR mirror

Details

  • Perfectly tuned to the dimensions of video and camera networks in the vehicle
  • Distances from a few centimeters up to 15 meters
  • Ultra-low glass-2-glass latency: < 20 ms|approx. 1 frame
  • Data rates of up to 3 Gbit/sec.
  • Bidirectional single cable connection for control, uncompressed video signals and power supply
  • Accessories such as plug connectors and conductive material for the demands of the automotive field

CMS Benefits

  • HDR images
  • Dimming, stepless brightness adjustment
  • Reverse mode: The region of interest is changed to capture the environment directly behind the vehicle for reverse direction driving
  • CAN bus adaption based on state machine of the vehicle
  • Flexible cable lengths
  • Customer display housing design can be integrated
  • Scalable, adaptable to design requirements

Your advantages with Kappa

  • Complete systems (camera, monitor, cables)
  • Frozen image detection, extremely high dynamic range, avoidance of flickering
  • CMS compliant with ISO26262, compliant to ISO 16505 and ECE-R46
  • IATF 16949 compliant
  • Kappa is pioneering in CMS systems with road traffic homologation – your most experienced development partner worldwide!

Powerful technology!

Complex light conditions - avoidance of flickering

Slow, fast, bright, dark, forward, backwards, disturbing optical effects: technologically, thanks to multi-level application-specific control algorithms and extremely high dynamic range we master typical driving situations and the specific, complex light relationships in road traffic. Pulsed light, highlights, and sun low on the horizon – problems solved.

Rigid-flex technology for the smallest designs

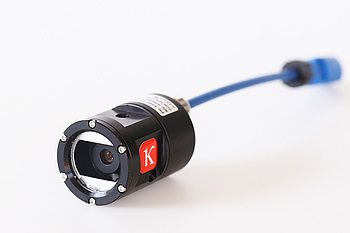

Cameras in passenger vehicles must be designed to be extremely space saving, as a rule. Here, we rely on Rigid-Flex PCB technology. It allows us to combine the necessary mobility in optics, electronics, and mechanics, and still fit into the tightest spaces available. One further advantage of this technology is the elimination of disruptive effects caused by connectors.

Optics design

To address future applications, adaptive optics design is another key issue. As a consortium leader, Kappa draws upon a strong network of highly specialized partners, particularly in the high-end area. We work closely with renowned institutes and optics manufacturers.





Application-specific signal processing

For demanding automotive applications, the complete spectrum of Kappa’s signal processing is fully exploited, stretching far beyond current camera standards. We offer exhaustive, application-specific signal processing and algorithms to compensate for unavoidable optical characteristics such as distortion or trimming correction. Overlays can be superimposed onto images and camera data can be made available to other on-board networks. Frozen image detection provides safety.

APIX2® automotive interface

For automotive applications, we work with, among others, the APIX2® (Automotive Pixel Link) interface from Inova Semiconductors. This interface is designed for the specific needs of the auto industry and offers data rates of up to 3 Gbit/sec.

Standardized processes for development and manufacturing, ISO 26262, ISO 16505, ECE-R 46

Safe technology: our safety management assures our products’ functional safety using all required methods. The relevant procedures and analyses apply to all phases of design and manufacture. Thus, our cameras qualify for approval as a critical component of the vehicle anywhere in the world.

Set up for series production

All concepts and their technical realization, from components to manufacturing procedures, are conceptualized and designed for industrial mass production.  The applied technologies can be transferred into ASIC and can be produced and tested using automated procedures.

Show text in one Show text in slides

Kappa offers expertise in the homologation of camera monitor systems, especially according to ECE-R46 for mirror classes I and III

Safe!

Seeing more and better than with classic mirrors

Style!

Perfect integration into aerodynamic designs

Extra class!

Feeling & technology for the extraordinary
